SLIDELIFT®

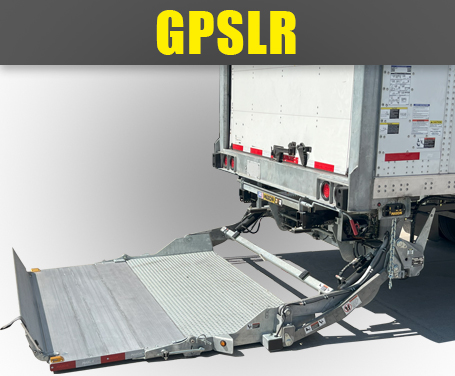

Maxon’s slider-type gates stow horizontally underneath the truck or trailer. They don’t need extension plates and therefore can accommodate roll-up as well as swing doors. Maxon offers slide-type products with level ride (GPSLR) as well as level-ramping ride (GPS).

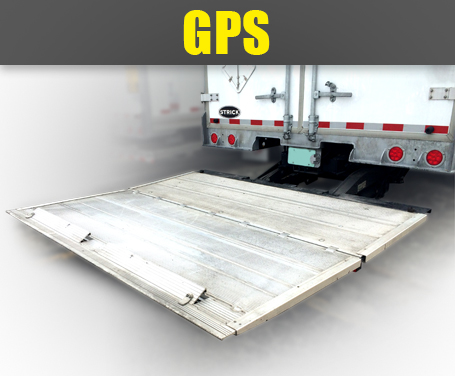

The GPS's design helps enhance ease of use. A standard handheld remote and dual cart stops with auto leveling and foot controls make the liftgate easy to operate, while an automatic "Quicklock" stabilizes the gate during lifting.
KEY FEATURES
- Lightweight Slidelift model with standard aluminum platform
- Stores underneath rear of trailer
- Automatic "Quicklock"
- Standard hand held remote and dual cart stops
- Auto leveling and foot controls
- Ships completely assembled
Level ride, FMVSS & CMVSS underride certification and the industry’s toughest finish create the smartest choice in sliders.
KEY FEATURES
- Level-ride platform
- Aluminum flip-over sections with MAX GRIP® surface treatment
- SmartSpace (gap between platform and rear sill)
- Hydraulic locking system
- Flashing platform lights standard
- Meets underride impact certifications (CMVSS & FMVSS)
- Galvanized Finish – STANDARD!

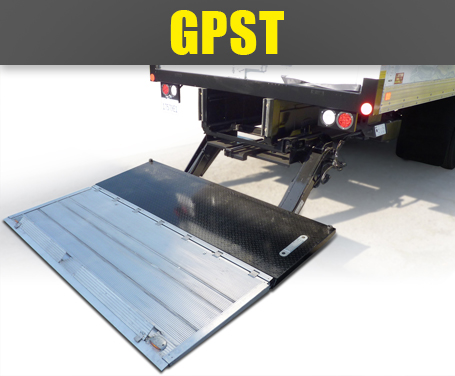

The GPST is MAXON's latest addition to its Slider product range. This slider is explicitly designed for trucks and excels in performance as well as compact dimensions
KEY FEATURES
- The GPST features the unique X1 technology which utilizes only one lift and one tilt cylinder, resulting in less parts (e.g. less hoses, valves, etc.) and consequently less maintenance costs
- The GPST utilizes two opposing cylinders to slide in and out resulting in a smooth and reliable deployment
- The GPST features a unique Quick Lock mechanism. The Quick Lock carries the load (not the rollers) and avoids platform bouncing when moving load from the truck to the platform
- The GPST flip over section is torsion spring assisted for effortless opening and closing
- The GPST features 2-speed cylinders that slow the platform when it touches the ground and tilts down automatically

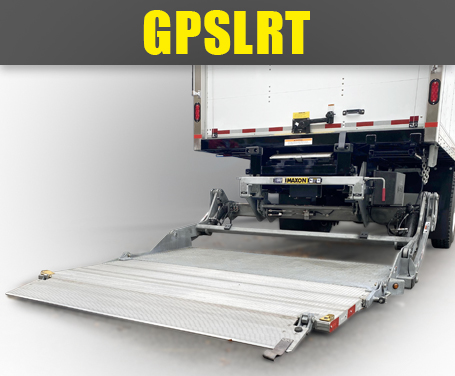

Level ride, up to 5,500 lbs. lifting capacity, and the industry's toughest finish create the smartest choice in sliders for trucks.
KEY FEATURES
- Level-ride platform
- Aluminum flip-over sections with MAX GRIP® surface treatment
- SmartSpace (gap between platform and rear sill)
- Hydraulic locking system
- Flashing platform lights standard
- Galvanized Finish – STANDARD!

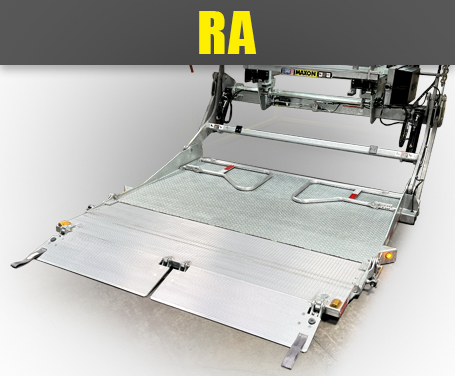

MAXON's new Trailer Side Door Gate level-ride Slidelift® is purpose designed, made to last and supported by the best pre- and after sales service organization in the industry.
KEY FEATURES
- The RA side door slider-type gate comes in 3,500 lbs and 4,500 lbs capacities
- Two hydraulic lifting cylinders with bi-directional lock valves
- The RA comes completely assembled and prefilled with hydraulic oil
- Wide arm design for stability and maximum side rail clearance capabilities
- Greaseable pins and bushings on all pivot points
- Flashing platform lights standard
- Center mounted junction box enables easy and secure connections for power as well as axillary items such as secondary switches
- Galvanized Finish – STANDARD!
